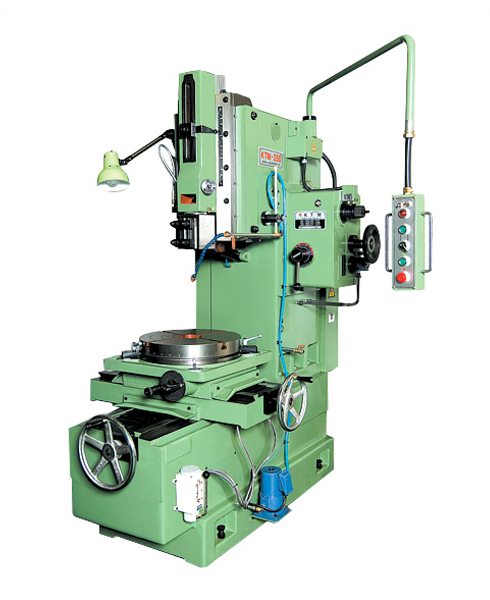

SLOTTER MACHINE

KTM-250

(수동)

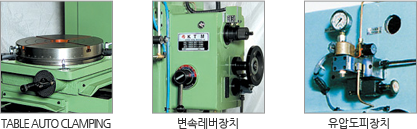

  • Slide way은 고주파 열처리 및 연삭이되어 내구성이 우수합니다.
  • Ram의 조정이 0˚~10˚이내의 Taper가공이 가능합니다.
  • 유압자동으로 인한 바이트 도피 장치 및 절삭유공급 장치로 공구 수명이 연장됩니다.
  • 링크시스템의 RAM은 절삭 가공 후 급속 복귀하므로 시간절약 및 강력절삭에 적합합니다.
  • 견고성과 내마모성이 뛰어나 중절삭 및 정밀가공에 적합합니다.
  • Slide ways treated with high-frequency heat and ground.
  • Possible to taper within 0˚~10˚through RAM adjustment.
  • Hydraulic auto-induced byte escape devices and cutting oil supplies extend tool life.
  • Link system's RAM suitable for timesaving effect and powerful machining since it returns rapidly after machining.
  • It is suitable for heavy cutting and precision machining due to its robustness and abrasion resistance.
최대가공깊이 Maximum storke 250mm
테이퍼가공범위 Tilting of ram 0˚~ 10˚
헤드조정범위 Vertical adjustment of ram 260mm
가공물 최대높이 Ram guide to table surface 415mm
행정속도범위 Range of stroke speed 21-93SPM
테이블의 직경 Diameter of table Ø460mm
좌우이송거리 Longitudinal traverse 440mm
전후이송거리 Cross traverse 360mm
테이블과 공구대의 최대거리 Max. tool post to table surface 500mm
공구대와 칼럼의 거리 Tool post face to column 450mm
테이블 중심과 칼럼간의 거리 Table center to column 259~735mm
주모터 Main motor 2.2(3)Kw(HP)
공구홀더 최대직경 Max. tool shank size 40mm
설치면적 Floor space 1205mm x 1910mm x 2165mm
중량 About net weight 2500kg

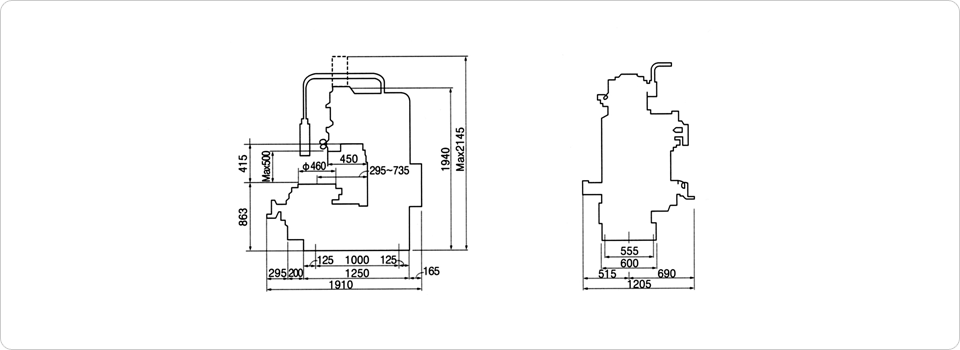

외형도 (Dimension)
